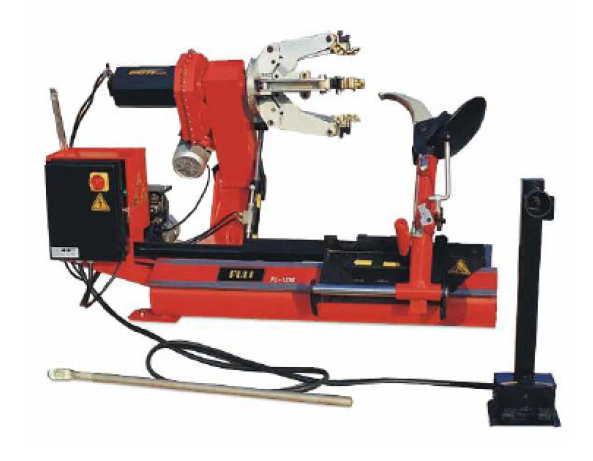

TYRE CHANGER
Features :
Electro-hydraulic operation
Clockwise and anticlockwise rotation of the clamp range from 14’’-26’’
Movable controlling unit
Movable tool carrier arm and the bottom bracket
Hydraulic motor with pressure adjustment device
Adjustable clamping force
Mounting head can be rotating at high speed automatically
Window XP operating system
Technical Data :
Power
1.5 KW
Rotating Motor
1.1 KW
Power Supply
220V/400V
Clamping Capacity
14’’-26’’
Maximum Tyre Diameter
1600mm
Maximum Tyre Width
780mm
Maximum Tyre Weight
500kg
Dimension
2020 x 1580 x 1000mm
Weight
Small Vehicle ± 1 gm and Larger Vehicle ± 25 gm
Net/Gross Weight : 300/370 Kg.
300/370 Kg
Packing dimension
1700 x 880 x 1250
