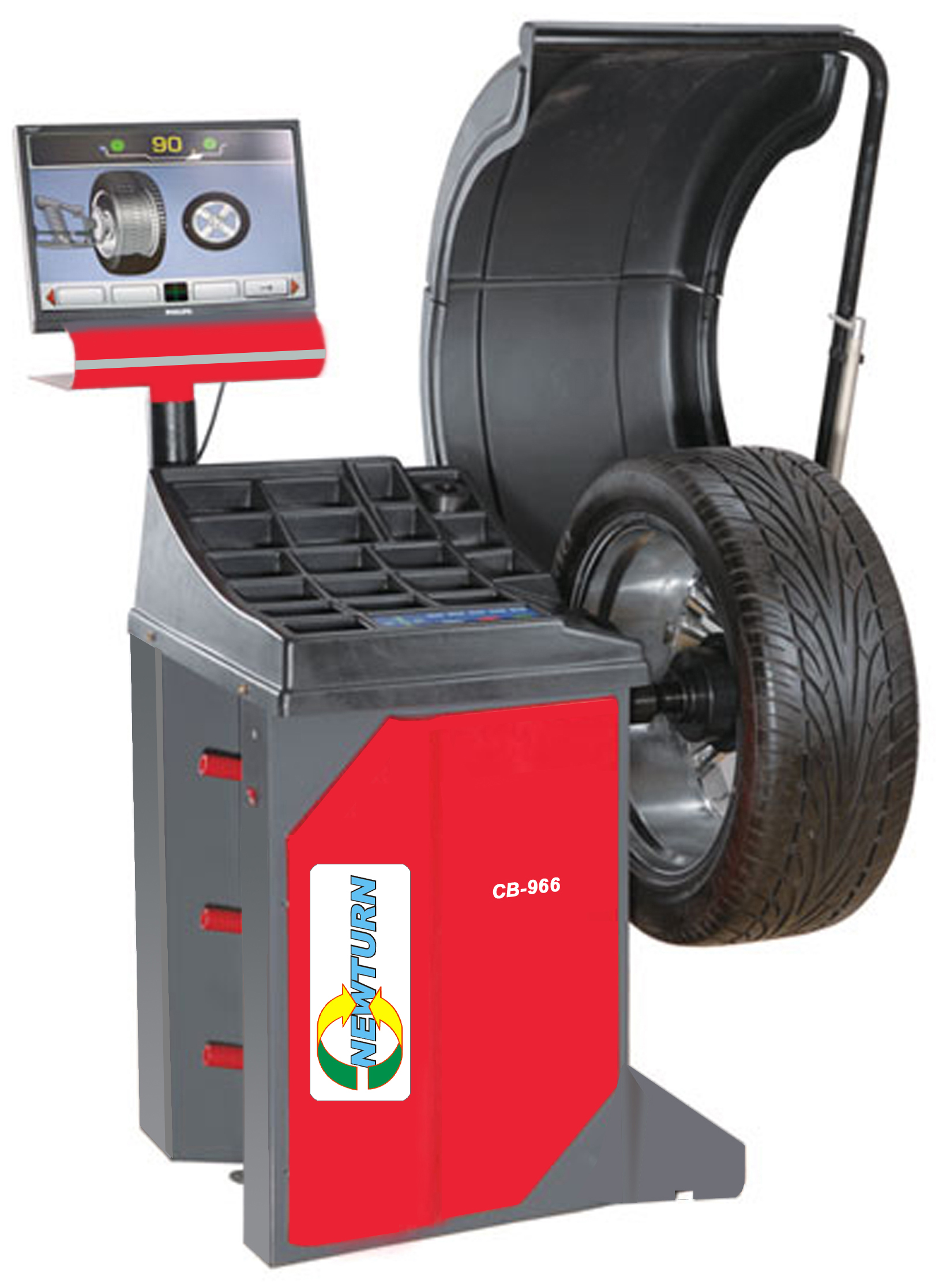

3-D Professional Wheel Balancer CB-966
|
 |
TECHNICAL PARAMETER :
| Power Supply |
220V/50Hz
1Ph/0.25 Kw |
| Rim Diameter |
10/24’’ |
| Max Wheel Diameter |
960mm |
| Wheel Width |
3’’ – 12’’ |
| Balancing Precision |
± 1g |
| Centering Wheel
Diameter hole |
40 – 150mm |
| Max Wheel Weight |
65 Kg |
| Speed rotation |
-180 rpm |
| Net Weight |
160 Kg |
|
|
Features
|
|
|
|
3D system, automatic input for distance, diameter and width
with external data set arm ref.888.967
|
|
|
|
Precision, easy and reliability |
|
|
|
CB-966 Hi-resolution of the graphic display, very simple icons
and no text on the pictures, the key functions are always
displayed and easy to read |
|
|
|
Simple and logical function guide you through all kind of wheel
balancing procedures and all kind of weight combination |
|
|
|
Hi-tech quality |
|
|
|
CB-966 hardware and software are LINUX based and the circuit
logic processor identify the top level quality about this balancer. |
|
|
|
Outstanding operating reliability |
|
|
|
CB-966 offer an operator guidance right through to the matching
program, logical procedure are displayed on the screen to give
all balancing information you need to easy do all kind of
balancing mode procedures with optional external data set arm
CB-966 become more fast to full automatic wheel dimension
input |
|
|
|
Geometric system, measurement and weight position
calculations inside the wheel |
|
|
|
Static and dynamic program |
|
|
|
6 alu program split and hide weight back to spokes |
|
|
|
OPT program, tyre-rim optimization |
|
|
|
FPP system. wheel braking to the compensate weight position |
|
|
|
Pedal brake to hold main shaft during weight application and
wheel mounting |
|
|
|
User spec memory, to store wheel size |
|
|
|
ECM,easy calibration mode, areo patented |
|
|
|
ESU,easy software upgrade/update by USB port |
|
|
|
Multi-language set up. |
|
|
|
Customize functions, weight units, dimesion units, and graphic
display |
|
|
|
3 cones from 40mm to 150mm
|
|
|
|
1 light truck spacer
|
|
|
|
1 quick nut
|
|
|
|
Monitor 17" LCD
|
