Specifications :
|
Structure |

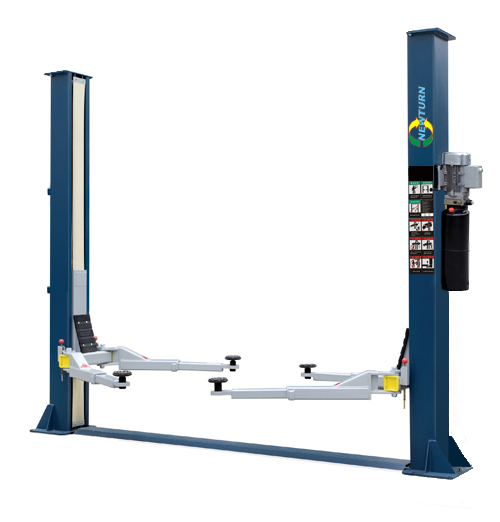

Two post lift with floor plate |
|
Capacity(kg) |
3500 |
|
Lift height(mm) |
1800 |
|
Rise time(s) |
50 |
|
Drop time(s) |
20 |
|
Powerofmotor (kw) |
2.2 |
|
Power supply(v) |
380/220 |
|
Machine Height(mm) |
2826 |
|
Machine Width(mm) |
3200 |
|
Frame Width(mm) |
3420 |
|
|
Features
|
|
|
|
5mm "international standard" column steel plates
|
|
|
|
8mm brace arm and 6mm Internal sliding column |
|
|
|
Wearable, Anti-High temperature, high strength oiliness macromolecule nylon slide block.
|
|
|
|
Require no less than 150mm cement on the ground, At least C25. |
|
|
|
Double safe Antiskid device, from Column ladder safe to close protection by dynamic hydraulic pressure, Ensure double safe stay for vehicle. |
|
|
|
Double safe Antiskid device, from Column ladder safe to close protection by dynamic hydraulic pressure, Ensure double safe stay for vehicle. |
|
|
|
Endure Max 5 T destructive testing , fulfill 3.5T/4T actual working conditions. |
|
|
|
Chain style pulling device , make the security parameter up to 5 times. |
|
|
|
Total Mold tooling technology, to ensure the conformity of both many a holes and welding places. |
|
|
|
Digital control raw materials processing center ensure the discrepancies at % stage & product consistency. |
|
|
|
Double cylinder dynamic hoist drive device, capacity is more than 3.5T/4T. |
|
|
|
Aluminum pump device , running time without any break down for at least 40,000 H. |
|
|
|
Mechanical control hydraulic pressure configuration. Simple, endurable and reliable. |
